Q5Max Outdoor 4G/WIFI Solar Powered Security Dual Lens Camera
Payment Method:
This new high-tech wireless dual linkage solar-powered camera consists of two motion cameras, the top one with a 180-wide viewing angle, the other is a PTZ camera with 4x optical zoom. It can meet your upgrade monitoring requirements outdoors.
The main features of the dual lens solar-powered camera:
1) 3MP+3MP dual motion lens: one motion camera with a 180-degree ultra-wide view, the other is a 4x digital zoom PTZ camera.
2) 100% wifi free, no wiring easy installation.
3) 12W solar charge panel with built-in rechargeable battery
4) Built-in MIC and Speaker, support two-way talk.
6) Support TF cards of up to 126GB and cloud storage.
8) Support Android/IOS remote view.
10) Support multiple installation modes: integrated/separated wall and ceiling mounted.

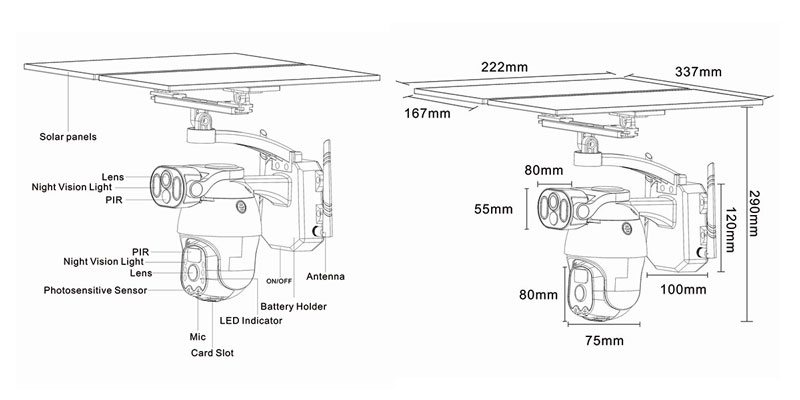

Product Overview
Specifications
| Model：Q5MAX | Version | Band | WiFi | 4G | |
| Network | Wireless WiFi frequency | 2.4 GHz | IEEE802.11b, 802.11g, 802.11n Draft | Support | N/A |
| 5.0 GHz | N/A | N/A | N/A | ||
| 4G nano SIM card | Southeast Asia | B1/B3/B5/B8/B34/B38/B39/B40/B41 | N/A | Support | |
| Australia | B1/B2/B3/B4/B5/B7/B8/B28/B40/B66 | N/A | Support | ||
| Japan | B1/B3/B8/B18/B19/B26 | N/A | Support | ||
| America | B2/B4/B5/B12/B13/B25/B26 | N/A | Support | ||
| Europe | B1/B3/B5/B7/B8/B20 | N/A | Support | ||
| Video | Master sensor | 6MP | lngenic :T40N+2063+2063 | ||
| Resolution | Main stream: 2304x2592@15fps, Sub stream: 640x720@15fps | ||||
| Format | Compression format | H.265 | |||
| Video file format | MP4 | ||||
| Lens | 2.8mm+6mm F2.0 , angle: 180+60 degrees. 4X digital zoom | ||||
| Night vision | 4+6pcs array LEDs, night vision Max 30m. Full-colorful day/night | ||||
| Audio | Compression | G.726/AAC. Audio code rate: 8Kbps, 16bit | |||
| Input/Output | Built-in MIC and Speakers, support two way audio | ||||
| Alarm | PIR motion detection | Support max 12 meters PIR detection range. | |||
| Alarm linkage | Alarm record videos to Micro SD card;Alarm mobile phone message push | ||||
| Video storage | Memory card | Support up to 128G micro SD card. Support cloud storage | |||
| Record | PIR alarm recording. | ||||
| Replay | Support App remote play and download the video | ||||
| Power supply | Solar panels | 12W monocrystalline silicon solar panel | |||
| Battery | Built-in 3 pcs 18650 battery, total volume max 9600mAh | ||||
| Operating mode | Low power working mode | ||||
| Wake-up method | PIR alarm wake up, remote manual wake up | ||||
| Hibernation | When alarm end or remote connection disconnected. | ||||
| Power consumption | Sleeping stand-by power: 0.03W; Working: 1.3W@days/3W@night | ||||
| PTZ | Rotation angle | PTZ：Horizon Pan: 0°～355°, Vertical Tilt: 0°～120°； Bullet：Horizon Pan: 0°～110°，Vertical Tilt: 0°～90°； |
|||
| Spinning speed | PTZ：Horizontal speed: 10°～ 30°/S; Vertical speed: 8°～ 25°/S Bullet：Manual adjustment |
||||
| Other | Power input | DC5V 2A | |||
| Environment | Environment -20℃~+60℃(-4℉~+140℉), Humidity 10%～80%, non-condensing | ||||
| Shell material | ABS fireproof plastic material, vandal-proof, waterproof level IP65 | ||||
| Power cable | Type-c interface, extension cable 3 meters | ||||
