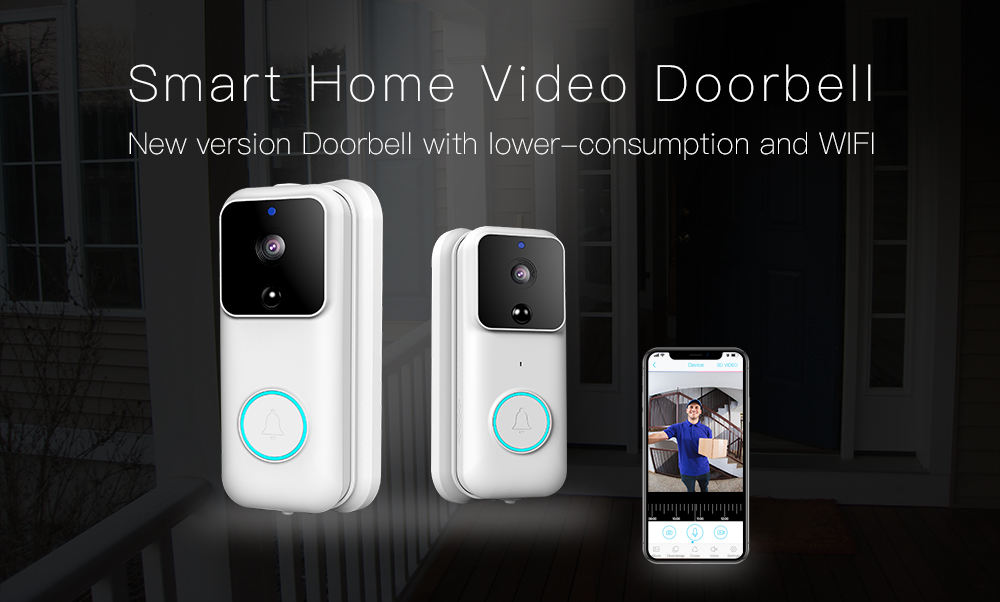

L16 Smart video Doorbell
Payment Method:
(1) Wire-free
HD video doorbell. No Cables No Drilling.
(2) Mobile Phone
No need to open the door, you can use your mobile phone to make video calls with outside visitors.
(3) Video Talk-Back
You can talk with visitors anytime or anywhere.
(4) Low-consumption
Two charging methods: 18650# or 2600mAh.The working time can up to 6 months.
(5) PIR Function
The device has PIR function, it will alert you when detects someone approaching,remind by message or call.It will protect your family more effectively.
(6) Two Storage Methods
Support local Micro SD card storage,automatic loop recording.
The doorbell comes with the cloud storage function.
Main Features
• Audio: built-in pickup, pickup distance 5 meters; built-in speaker
• 6 infrared lamps, maximum irradiation distance 5 meters
• Storage function: support TF card (maximum 32G)
• 150 meters outdoors and 50 meters indoors
Specifications
| Image Sensor | 1/2.7''3.0MP CMOS Sensor |
| Display Resolution | 3MP |
| Focal Length | 3.22mm |
| Viewing Angle | 122 degrees |
| Infrared lights | 6 infrared lamps, maximum irradiation distance 5 meters |
| Wake-up mode | PIR wake-up/button wake-up/cell phone wake-up |
| Audio | Built-inMic &Speaker |
| Connection mode | Wi-Fi (supporting IEEE802.11 b/g/n 2.4 GHz protocol) |
| Transmission distance | 150 meters outdoors and 50 meters indoors (depending on the environment)
|
| Power Supply and Duration: | 18650 Battery, DC5V-2A, AC 14-24V AC Power Supply
|
| Power consumption | 160uA in dormant state, 200mA@3.7V in working state |
| Storage | Micro SD Card up to 64GB |
| Cloud | Support cloud storage |
| Appearance size | 125mm*60mm*35mm |
| Net weight | 100g |
